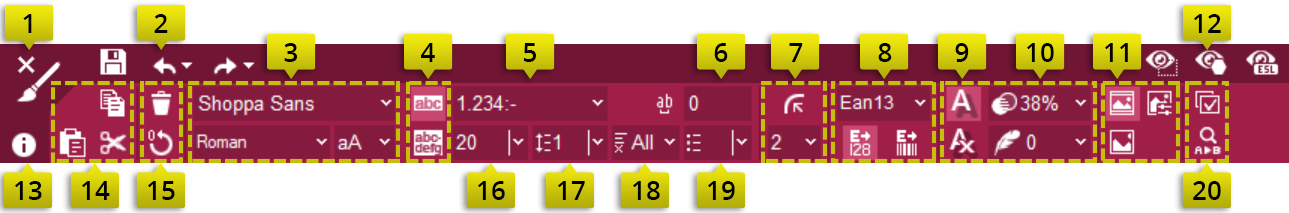

General Tab
- Exit design mode.
- Save. Undo, Redo.
- Font. Font style (regular, semibold, bold). Letter case (aA, Aa, AA, aa).
- Single line text. Multiline text.
- Price formatting.
- Tracking.
- Corner radius (colour boxes).
- Barcode type. Use code128 on error. Leave blank on error.
- Show shadow. Hide shadow.
- Shadow opacity. Shadow feather (softness of the shadow).
- Fit picture in box. Expand picture to fill. Change picture adjustments (light, colour, blur).
- Preview template. Hide inactive elements. ESL.
- Information about the template.
- Copy. Paste. Cut.
- Delete. Clear transform.
- Font size.
- Line spacing.
- Line limit.
- Bullet points.
- Select all objects. Search and replace.
Arrange tab
- Unlock objects. Lock objects. Used to control if an objects can be editable or not for the plus users.
- Include on output, hide on output.
- Placement of text and picture within the box, align left, align center, align right, align top, align middle, align bottom.
- Center box on our template: Horizontally, vertically.
- Placement of objects in relation to each other, align lefts, align centers, align rights, align tops, align middles, align bottoms.
- Make same width, make same height,
- Make same size and same position.
- Make vertical spacing equal, make horizontal spacing equal.
- Arrange objects, bring to front, send back, move forward, move backwards.
- Group objects.
- Ungroup objects. Ungroup all objects.
- Place elements in pixel grid.
- Set Tab order. Clear Tab order.

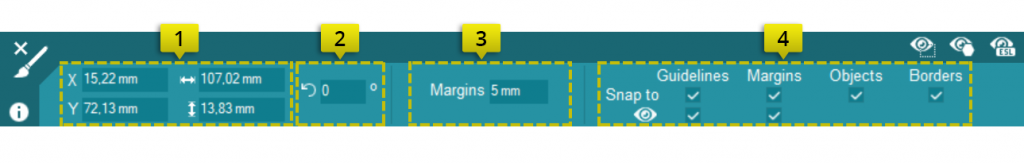

Precision tab
- X and Y, vertical and horizontal dimensions in millimeters.
- Rotate objects.
- Margins in millimeters.
- Snap to, guidelines, margins, objects, borders.
Tags Tab
- Product index. Language index.
- Content.
- Visibility. Inverted visibility.
- Visibility by picture. Inverted visibility by picture.
- Toggle showing tags.
Animate tab
The animate tab is covered in the digital signage chapter.
Overview – Interface and settings

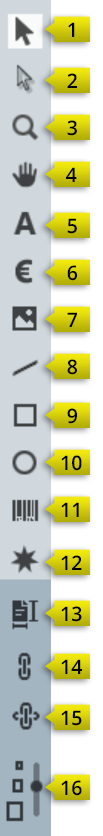

Left toolbar
- Arrow Tool – Select elements.
- Shadow Tool – Click on an element and drag the mouse cursor to create shadows.
- Zoom Tool – Zoom in by left clicking, zoom out by right clicking.
- Pan Tool – Pans the template.
- New Text Element – Click and drag to create a text box.
- New Price Element – Click and drag to create a price element.
- New Picture Element – Click and drag to create a picture element.
- New Line Element – Click and drag to create a line element.
- New Rectangle Element – Click and drag to create a rectangle. Press CTRL to create a square.
- New Circle Element – Click and drag to create a circle. Press CTRL to create a perfect circle.
- New Barcode Element – Click and drag to create a barcode element.
- New Shape Element – Click and select from added shapes then click and drag to create shape element.
- Manage layouts and formats – Lets you create new formats and manage formats in templates.
- Link layouts – Use this to link objects so changes affect multiple layouts.
- Super link layouts – Make design changes in all linked layouts at the same time.
- Thumbnail preview size.
